Aquasix

Aqua paving stones are permeable to water and enable the design of unsealed surfaces without loss of aesthetics. The surface of the AquaSix stones are provided with six water-draining openings, which open out into two water drainage openings on the underside of the stone. AquaSix is available with or without CleanTop® protection CF 90. AquaSix can be combined, especially with the conventional stones of the paving systems La Linia and Cubus. This is the special strength of the Aqua system. An intelligent synthesis of ecology and design.

Colours

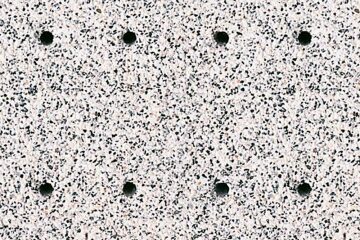

Light granite, fine blasted

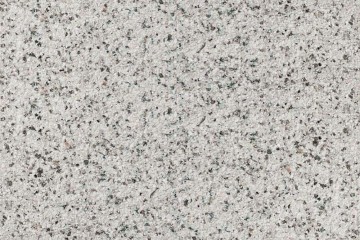

Light granite

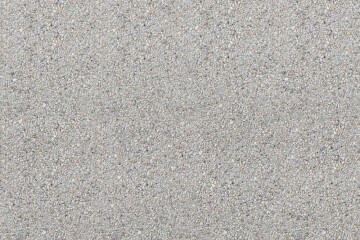

Light grey

Colour 11.01

Colour 11.03

Colour 13.01

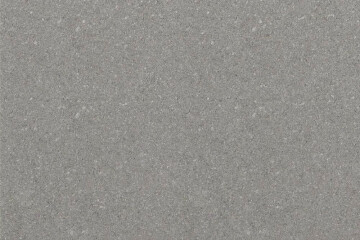

Colour 11.05

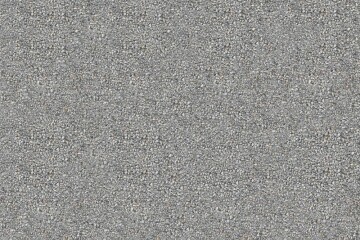

Medium grey

Grey granite

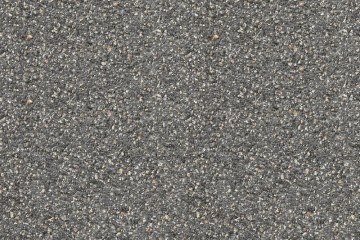

Dark grey

Diamond grey

Dark grey granite

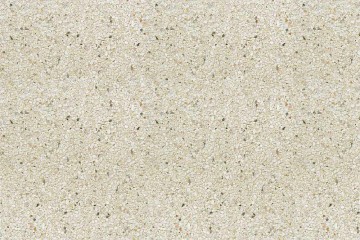

Objectcolour 2397

Anthracite basalt

Colour 13.03

Sand beige

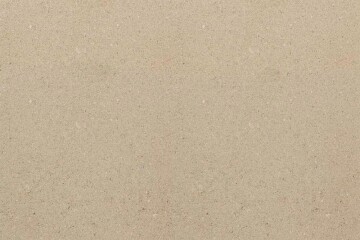

Colour 15.01

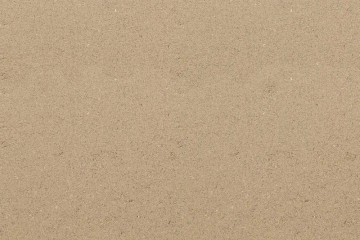

Colour 15.03

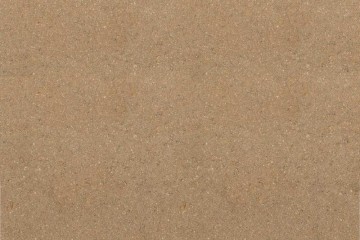

Colour 15.05

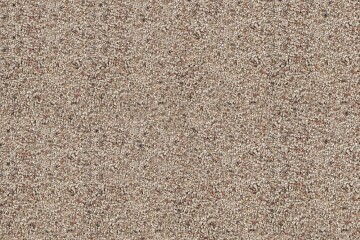

Special Colour 2224

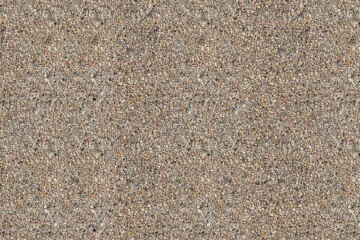

Quarz sand beige

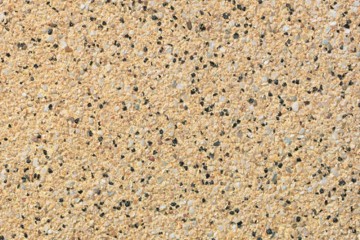

Jura yellow

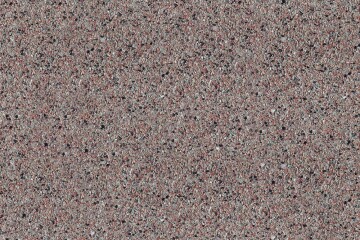

Grey-reddish granite

This is a selection of possible colours. Many additional colours are availabe on request.

Properties

High water permeability.

Infiltration rate: average 800 l/(s.ha). This far exceeds the guideline values of "ATV" Worksheet A 138 van 500 l/(s.ha). The report can be requested from us.

Manufactured according to the "Guideline for the production and quality monitoring of water permeable paving stones made from porous aggregates particles concrete" by Bundesverband Deutsche Beton- und Fertigteilindustrie.

Resistant to frost and de-icing salt (tested according to ÖNORM).

Good walkability.

Load test after watering with 18 t truck, 30 full braking cycles: Minimum settlement 0- 3 mm (with 10 cm thickness of stone).

Stone hardening process through climate-controlled surface finishing.

Climate-neutral production.

CleanTop® Technology

(optional)

CleanTop^® protection system with Clean Factor CF 90 (integral part of the production process):

Reduced dirt absorption.
Natural appearance combined with surface protection.
Easier to clean compared to a product without CleanTop^®.
Inhibits algae and moss.

Object sizes

Bevel edge
Plansize	nominal size	DIN EN Classification
20 x 20 x 8	196 x 196 x 80	In Anlehnung an DIN EN 1338 KDI

20 x 20 x 10	196 x 196 x 100	In Anlehnung an DIN EN 1338 KDI

Regarding the minimum quantities for object formats (no extra cost) and the combination of sizes please contact us. All specified identifications are grid dimensions including spacers and joint portion.

Gallery

Expand GalleryCollapse Gallery

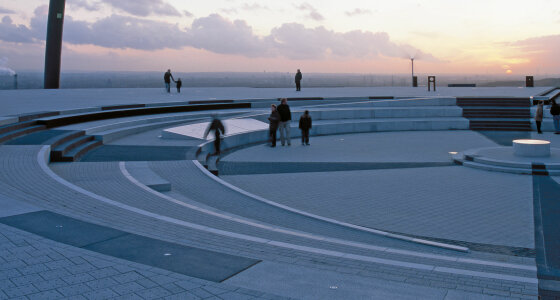

Herten (DE), Horizont-Observatorium, AquaSix Granietlicht in combinatie met ConceptDesign-Traptreden Basaltantraciet en Granietlicht.



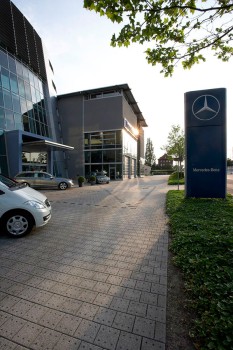

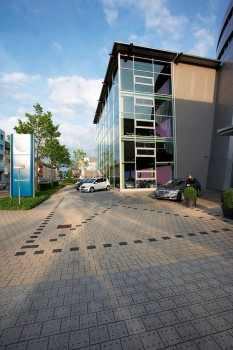

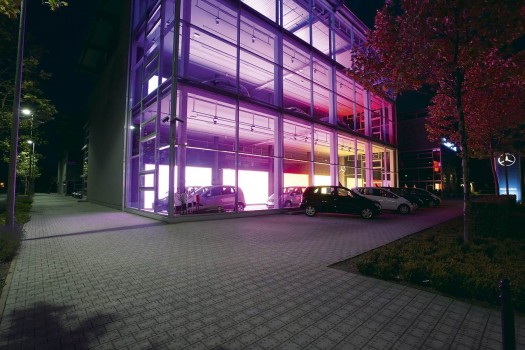

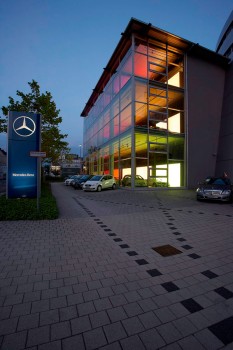

Köln (DE), Mercedes Benz, AquaSix Granietlicht in combinatie met La Linia Objectkleur.



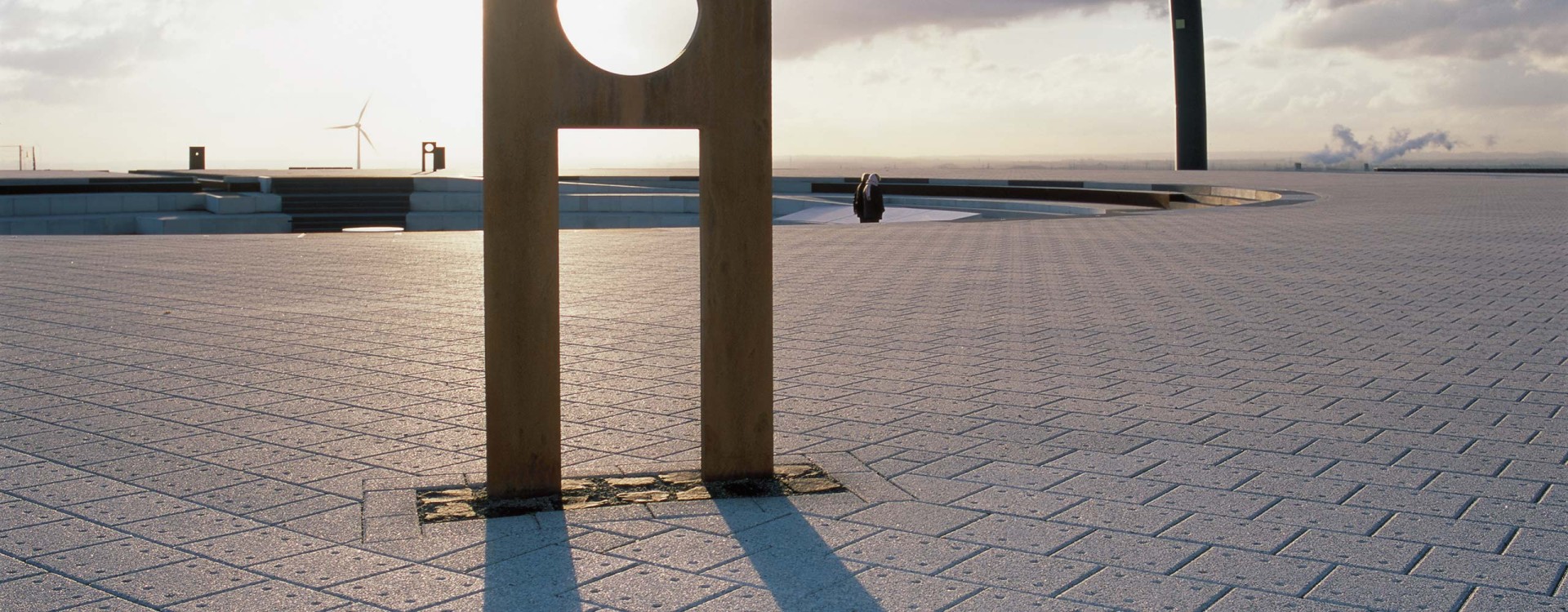

Herten (DE), Horizont-Observatorium, AquaSix Granietlicht.



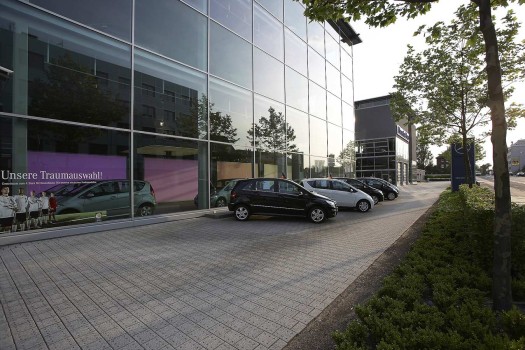

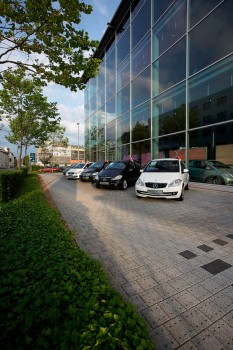

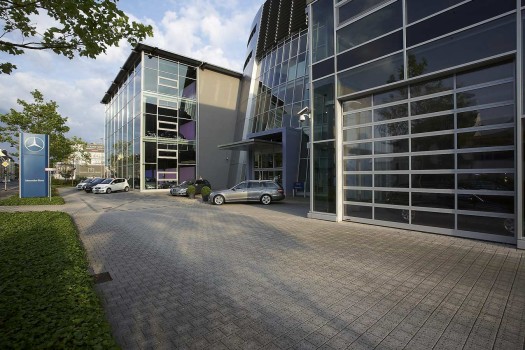

Köln (DE), Mercedes Benz, AquaSix Granietlicht.



Herten (DE), Horizont-Observatorium, AquaSix in combinatie met La Linia Granietlicht en ConceptDesign-Traptreden Basaltantraciet en Granietlicht.



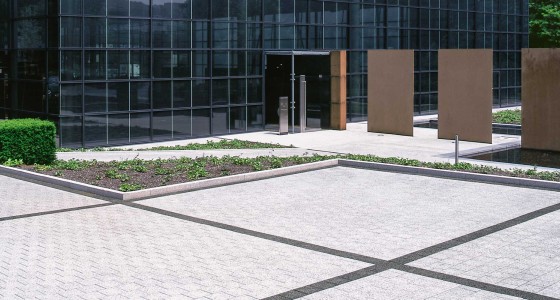

Iserlohn (DE), Schrodt GmbH, AquaSix Granietlicht.



AquaSix Granietlicht in combinatie met La Linia Objectkleur.



Laying pattern calculator

PATTERN 01

Pattern 01

AquaSix as La Linia light-granite. Number of units: approx. 25 units per m².
Edge units with La Linia 20 x 10 cm, approx. 2 units per rm.

Pattern 011/4

PATTERN 02

Pattern 02

AquaSix as La Linia light granite. Number of units: approx. 25 units/m².

Pattern 022/4

PATTERN 03

Pattern 03

AquaSix as La Linia light granite. Number of units: approx. 20 units/m².
Combined with La Linia anthracite basalt 10 x 10 cm.
Number of units: approx. 20 units/m².
Edge units with La Linia 20 x 10 cm.
Number of units: approx. 2 untis per rm.

Pattern 033/4

PATTERN 04

Pattern 04

AquaSix as La Linia light granite (Number of units per basic layer: approx. 16 units/m²).
Combined with Il Campo cotto 15 x 10 cm (Number of units per basic layer: approx. 16 units/ m²) and 15 x 15 cm (Number of units per basic layer: approx. 1 unit/m²).

Pattern 044/4

The quantity of vertical bond depends on the structural situation.
Laying patterns and hatching are available on request.
