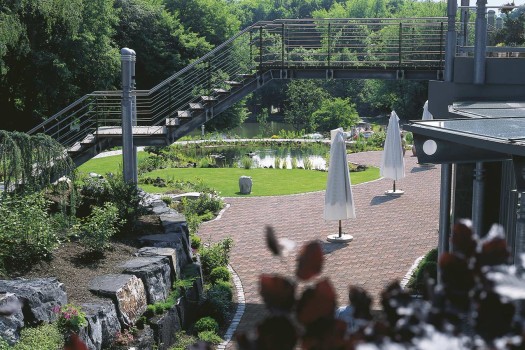

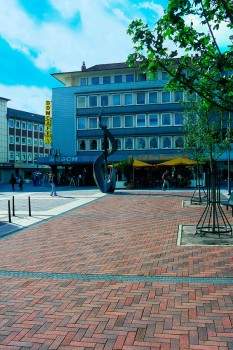

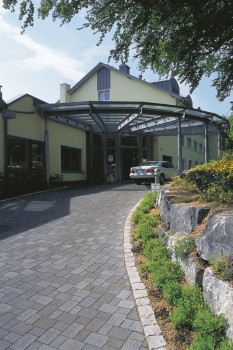

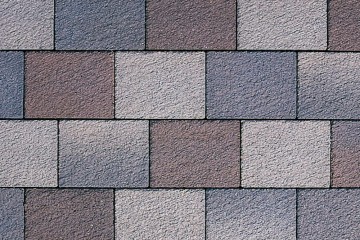

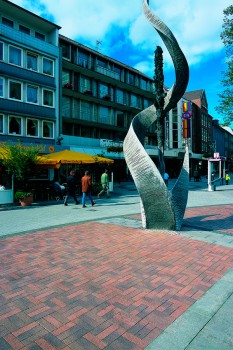

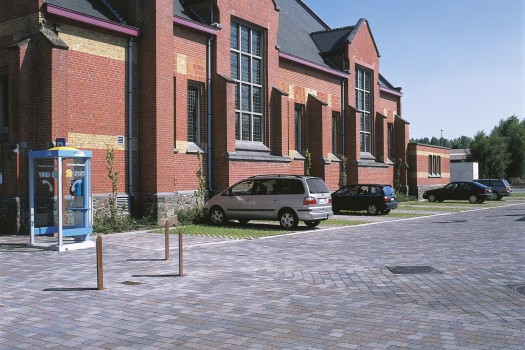

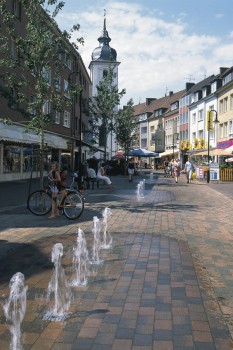

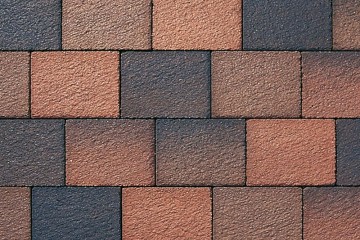

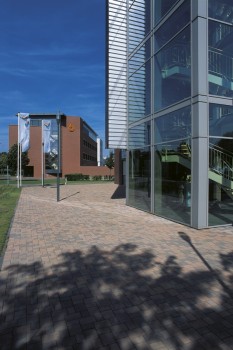

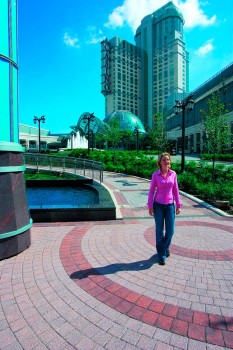

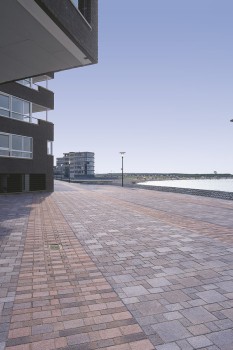

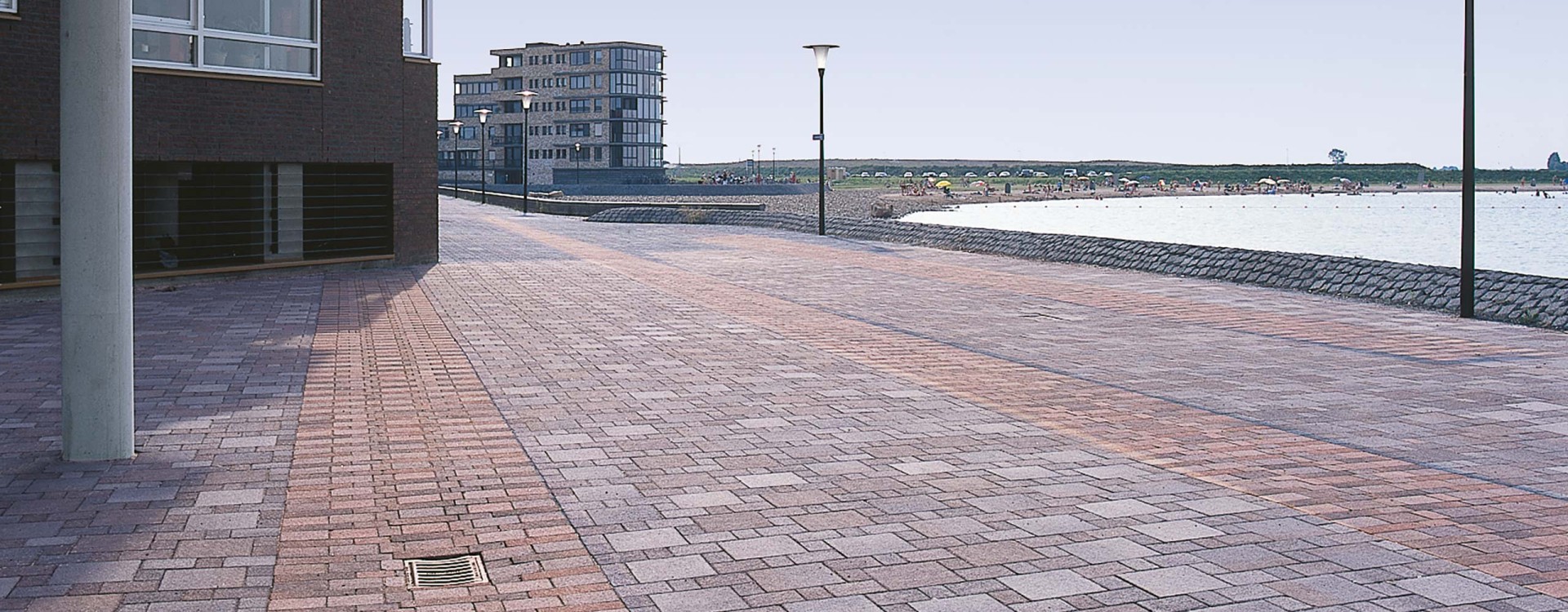

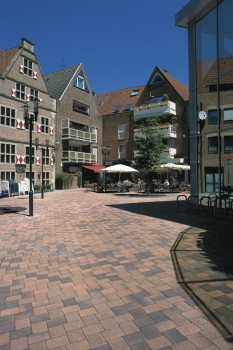

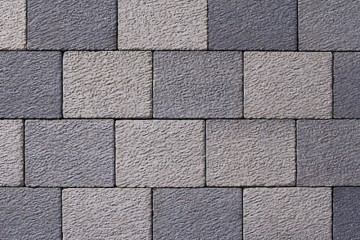

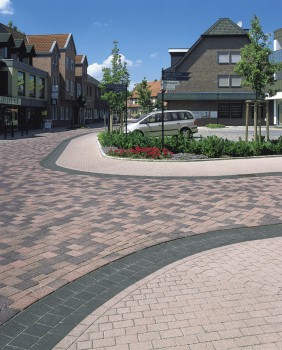

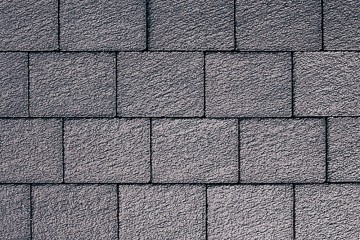

Il Campo – already a classic in urban areas. This paving system has proven its durability on many thousands of square meters of busy roads and squares. Il Campo is a heavy-duty concrete paving stone whose wear-resistant surface is produced using a process developed by METTEN Stein+Design. The result is a structure reminiscent of the bush-hammered or nidged surface of a natural stone with different accents depending on the incidence of light. The irregularly broken edges create a lively joint pattern. The use of colour-matching sands and natural stone chippings as well as high-quality iron oxide colours ensure the high colour fastness of the paving. Over the years, Il Campo develops a natural patina, and the paved surfaces gain even more charisma.
Product can also manufactured individually for your object in the following sizes. Please contact us regarding the minimum purchase quantities (no surcharge) and the combinability of the formats among each other.
Without bevel edge | ||
|---|---|---|
| Plansize | nominal size | DIN EN Classification |
| 15 x 7,5 x 8 | 149 x 74 x 80 | DIN EN 1338 KDI |
| 15 x 10 x 8 | 146,5 x 96,5 x 80 | DIN EN 1338 KDI |
| 15 x 15 x 8 | 146,5 x 146,5 x 80 | DIN EN 1338 KDI |
| 20 x 15 x 8 | 196,5 x 146,5 x 80 | DIN EN 1338 KDI |
| 22,5 x 7,5 x 8 | 220 x 70 x 80 | DIN EN 1338 KDI |
| 30 x 10 x 8 | 296,5 x 96,5 x 80 | DIN EN 1338 KDI |
| 30 x 15 x 8 | 297 x 147 x 80 | DIN EN 1338 KDI |
| 30 x 30 x 8 | 296,5 x 296,5 x 80 | DIN EN 1338 KDI |
| 15 x 10 x 12 | 148 x 98 x 120 | DIN EN 1338 KDI |
| 15 x 15 x 12 | 144,5 x 144,5 x 120 | DIN EN 1338 KDI |
| 60 x 60 x 14 | 595 x 595 x 140 | DIN EN 1339 PKDUI 30 |
| 20 x 15 x 16 | 194 x 144 x 160 | DIN EN 1338 KDI |
| 30 x 15 x 16 | 295 x 145 x 160 | DIN EN 1338 KDI |
Il Campo is delivered in layers.
One layer contains:
2 units 50 x 27 x 8 cm,
1 units 20 x 27 x 8 cm,
2 units 44 x 21 x 8 cm,
2 units 40 x 21 x 8 cm,
2 units 36 x 21 x 8 cm,
2 units 36 x 15 x 8 cm,
2 units 34 x 15 x 8 cm,
2 units 27 x 15 x 8 cm,
2 units 23 x 15 x 8 cm.
1 layer = 1,19 m2
All dimensions given are grid dimensions including spacers and joint proportion.
For more information please contact us.
Pattern V01
Verband 01
Pattern V02
Verband 02
Pattern 01
Number of units per m²:
15 x 10 cm approx. 66.7 units
Edge units per running metre:
15 x 10 cm approx. 5 units
(split to 10 x 7.5)
Pattern 02
Number of units per m²:
15 x 15 cm approx. 44.4 units
Edge units per running metre:
20 x 15 cm approx. 3.3 units
or 15 x 10 cm approx. 3.3 units
Pattern 03
Number of units per m²:
20 x 15 cm approx. 33.3 units
Edge units per running metre:
15 x 10 cm approx. 3.3 units
Pattern 04
Number of units per m²:
15 x 15 cm approx. 19 units
(approx. 43% of area)
20 x 15 cm approx. 19 units
(approx. 57% of area)
Edge units per running metre:
15 x 10 cm approx. 3.3 units
Pattern 05
Number of units per m²:
15 x 10 cm approx. 27 units
(approx. 40% of area)
15 x 15 cm approx. 27 units
(approx. 60% of area)
Edge units per running metre:
15 x 10 cm approx. 4 units
Pattern 06
Number of units per m²:
15 x 10 cm approx. 66.7 units
Edge units per running metre:
15 x 15 cm approx. 2 units
Pattern 07
Number of units per m²:
15 x 10 cm approx. 66.7 units
Edge units per running metre:
15 x 15 cm approx. 2 units
Pattern 08
Number of units per m²:
15 x 10 cm approx. 22.2 units
(approx. 33% of area)
20 x 15 cm approx. 22.2 units
(approx. 66% of area)
Edge units per running metre:
15 x 15 cm approx. 2 units
Pattern 09
Random arrangement
Number of units per m²:
15 x 15 cm approx. 22 units
(approx. 50% of area)
20 x 15 cm approx. 17 units
(approx. 50% of area)
Edge units per running metre:
15 x 10 cm approx. 1 unit
Pattern 10
Number of units per m²:
15 x 10 cm approx. 66.7 units
Pattern 11
Number of units per m²:
30 x 10 cm approx. 16.7 units
20 x 10 cm approx. 16.7 units
Edge units per running metre:
15 x 10 cm approx. 2 units
Pattern 12
Number of units per m²:
30 x 10 cm approx. 33.3 units
Edge units per running metre:
30 x 10 cm approx. 10 units
Pattern 13
Number of units per m²:
30 x 10 cm approx. 33.3 units
Pattern 14
Number of units per m²:
30 x 30 cm approx. 8.85 units
15 x 15 cm approx. 8.85 units
Edge units per running metre:
15 x 15 cm approx. 3 units
Pattern 15
Random arrangement
Number of units per m²:
30 x 30 cm approx. 3 units
20 x 15 cm approx. 7 units
15 x 15 cm approx. 19.5 units
15 x 10 cm approx. 6 units
Pattern 16
Number of units per m²:
30 x 30 cm approx. 5.6 units
(approx. 50% of area)
20 x 15 cm approx. 11.2 units
(approx. 33% of area)
15 x 10 cm approx. 11.2 units
(approx. 17% of area)
Edge units per running metre:
15 x 10 cm approx. 2.5 units
Pattern 17
Random arrangement
Number of units per m²:
30 x 30 cm approx. 2.4 units
20 x 15 cm approx. 14.4 units
15 x 15 cm approx. 9.1 units
15 x 10 cm approx. 9.8 units
Pattern 23
Number of units per m²:
30 x 30 cm approx. 5.7 units
15 x 10 cm approx. 32.5 units
Pattern 24
Number of units per m²:
30 x 30 cm approx. 8.3 units
30 x 10 cm approx. 8.3 units
Pattern 25
Number of units per m²:
30 x 30 cm approx. 8.4 units
30 x 10 cm approx. 8 units
Pattern 26
30 x 30 cm
30 x 10 cm
20 x 15 cm
15 x 15 cm
15 x 10 cm
Requirement referred to banderings
Pattern 27
30 x 30 cm
20 x 15 cm
15 x 15 cm
15 x 10 cm
Requirement referred to banderings
Pattern 28
Number of units per m²:
30 x 30 cm approx. 11.1 units
Edge units per running metre:
15 x 15 cm approx. 3.33 units
Border units per running metre:
20 x 15 cm approx. 13.33 units
30 x 10 cm approx. 10 units
Pattern 32
Number of units per area:
30 x 30 cm approx. 4 units
15 x 15 cm approx. 20 units
Pattern 33
Random arrangement
Number of units per m²:
30 x 30 cm approx. 3 units
20 x 15 cm approx. 12 units
15 x 15 cm approx. 6 units
15 x 10 cm approx. 16 units
The quantity of vertical bond depends on the structural situation.
Laying patterns and hatching are available on request.
