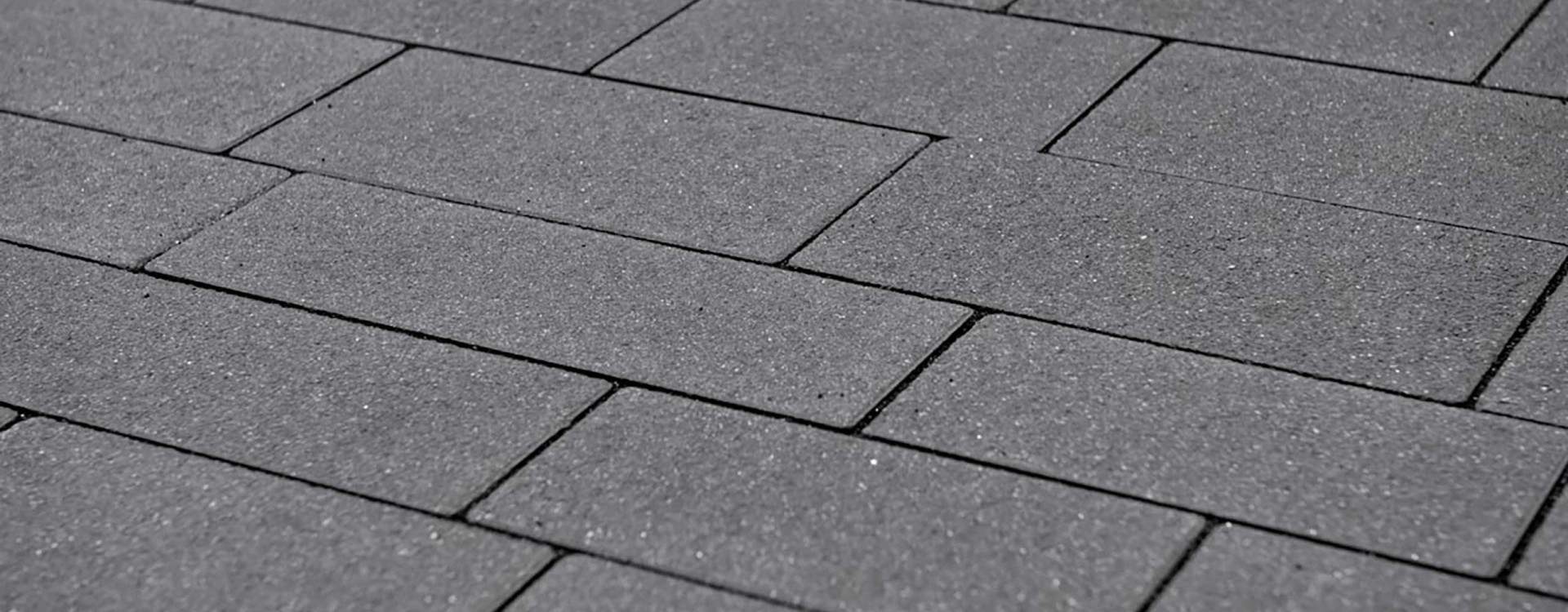

Corio Anthracite.
Corio Anthracite.

Noble impression with velvety surefootedness.

Even hard stone can have soft sides: High-quality natural stone chippings characterize the Corio paving stone, which has a novel velvety surface due to a special hardening process with climate-controlled finishing.

Marketplaces, pedestrian zones, drivable areas, schoolyards - Corio is used by landscape architects, garden and landscape builders, architects and planners in many areas. Its fine roughened surface is slip-resistant yet soft to feel. The paving stone is protected with CleanTop® CF 90 for easy cleaning, and its elegant stone edges with a slight chamfer create an elegant appearance - even in public areas.

Corio
Colours
Properties
Standard sizes
Object sizes
Gallery
Editions
CDFarben
References
Laying pattern calculator
Verlegehinweise
Downloads
Links
Dealers

Colours

Colour 12.01
Colour 12.01
Objectcolour 2969
Objectcolour 2969
Objectcolour 3991
Objectcolour 3991
Objectcolour 2794
Objectcolour 2794

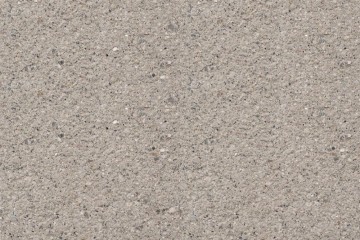

Grey-beige* (Colour 12.03)
Grey-beige* (Colour 12.03)
Colour 12.05
Colour 12.05
Objectcolour 3996
Objectcolour 3996

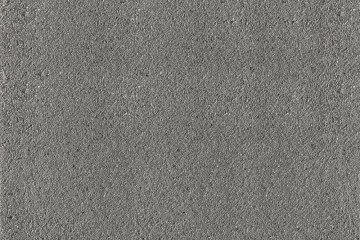

Light-gray* (Colour 14.01)
Light-gray* (Colour 14.01)
Objectcolour 3992
Objectcolour 3992
Colour 14.03
Colour 14.03
Anthracite* (Objektcolour 2915)
Anthracite* (Objektcolour 2915)
Colour 14.05
Colour 14.05
Objectcolour 2949
Objectcolour 2949
Colour 16.01
Colour 16.01
Colour 16.03
Colour 16.03
Colour 16.05
Colour 16.05
Objectcolour 4021
Objectcolour 4021
Objectcolour 3993
Objectcolour 3993
Objectcolour 3994
Objectcolour 3994

* We stock these Colours in standard formats.

Properties

  • Velvety® surface.
  • High colour fastness due to selected, colour-matched natural stone chippings.
  • With chamfer.
  • Frost and de-icing salt resistant.
  • Slip-resistant.
  • Stone hardening process through climate-controlled surface finishing.
  • Climate-neutral production.

CleanTop® Technology

(optional)

CleanTop® protection system with Clean Factor CF 90 (integral part of the production process):

  • Reduced dirt absorption.
  • Natural appearance combined with surface protection.
  • Easier to clean compared to a product without CleanTop®.
  • Inhibits algae and moss.

Standard sizes

Filter:

Slabs

80 x 40 x 5 cm
HellgrauAnthrazit
DIN EN 1339 PKDUI 3

Steps

80 x 40 x 5 cm
HellgrauAnthrazit
DIN EN 1339 PKDUI 3

Pavers

30 x 15 x 8 cm
HellgrauAnthrazit
DIN EN 1338 KDI
permeable to water
drivable
37,5 x 25 x 8 cm
HellgrauAnthrazit
DIN EN 1339 PKDUI 14
permeable to water
drivable
50 x 25 x 8 cm
HellgrauAnthrazit
DIN EN 1339 PKDUI 11
permeable to water
drivable
80 x 40 x 8 cm
HellgrauAnthrazit
DIN EN 1339 PKDUI 11
drivable
80 x 80 x 8 cm
HellgrauAnthrazit
DIN EN 1339 PKDUI 14
drivable

Running bond

Corio Kombiform v1
Running bond 8 cm
HellgrauAnthrazitGraubeige
permeable to water
drivable

Corio running bond is delivered in layers.
One layer contains
2 units 40 x 16 x 8 cm,
2 units 35 x 16 x 8 cm,
6 units 30 x 16 x 8 cm,
6 units 25 x 16 x 8 cm,
6 units 35 x 12 x 8 cm,
6 units 25 x 12 x 8 cm.
1 layer = 1,20 m2

All dimensions given are grid dimensions including spacers and joint proportion.

The average infiltration rate of Corio Aqua is over 1,000 l/(s.ha). Thus, the guideline values of the ATV worksheet A 138 of 500l/(s.ha) are exceeded by far.
A requirement for the percolation performance is the use of Aqua jointing split. In addition, the bedding and the bearing layer must be permeable to water.


Also available as eco-pavers.

For more information please contact us.

Object sizes

Product can be manufactured for your object in the following sizes:

Without bevel edge

Plansizenominal sizeDIN EN Classification
80 x 40 x 5 Stufenplatte 80 x 40 x 5

30 x 15 x 6 296 x 146 x 60DIN EN 1338 KDI bzw. DIN EN 1339 PKDUI


Bevel edge

Plansizenominal sizeDIN EN Classification
80 x 40 x 5 *796 x 396 x 50DIN EN 1339 PKDUI 3

20 x 15 x 8 196,5 x 146,5 x 80DIN EN 1338 KDI
20 x 20 x 8 194,5 x 194,5 x 80DIN EN 1338 KDI
30 x 15 x 8 *294,5 x 144,5 x 80DIN EN 1338 KDI
30 x 20 x 8 296,5 x 196,5 x 80DIN EN 1338 KDI
30 x 30 x 8 296,5 x 296,5 x 80DIN EN 1338 KDI
37,5 x 12,5 x 8 371 x 121 x 80DIN EN 1339 PKDUI 7
37,5 x 25 x 8 *371 x 246 x 80DIN EN 1339 PKDUI
40 x 20 x 8 396 x 196 x 80DIN EN 1339 PKDUI 14
50 x 25 x 8 *496 x 246 x 80DIN EN 1339 PKDUI 11
60 x 30 x 8 596 x 296 x 80DIN EN 1339 PKDUI 11
80 x 40 x 8 *796 x 396 x 80DIN EN 1339 PKDUI 11
80 x 80 x 8 *796 x 796 x 80DIN EN 1339 PKDUI 14

15 x 15 x 10 144 x 144 x 100DIN EN 1338 KDI
30 x 15 x 10 294 x 144 x 100DIN EN 1338 KDI
30 x 30 x 10 294 x 294 x 100DIN EN 1338 KDI
60 x 30 x 10 594,5 x 294,5 x 100DIN EN 1339 PKDUI 14
60 x 60 x 10 594,5 x 594,5 x 100DIN EN 1339 PKDUI 30

15 x 15 x 12 144,5 x 144,5 x 120DIN EN 1338 KDI
20 x 15 x 12 194,5 x 144,5 x 120DIN EN 1338 KDI
20 x 20 x 12 194 x 194 x 120DIN EN 1338 KDI
22,5 x 15 x 12 219,5 x 144,5 x 120DIN EN 1338 KDI
22,5 x 22,5 x 12 219,5 x 219,5 x 120DIN EN 1338 KDI
30 x 15 x 12 294,5 x 144,5 x 120DIN EN 1338 KDI
30 x 20 x 12 294,5 x 194,5 x 120DIN EN 1338 KDI
40 x 20 x 12 394,5 x 194,5 x 120DIN EN 1338 KDI
40 x 40 x 12 394,5 x 394,5 x 120DIN EN 1338 KDI
45 x 30 x 12 444,5 x 294,5 x 120DIN EN 1338 KDI
50 x 25 x 12 494,5 x 244,5 x 120DIN EN 1339 PKDUI 30
60 x 40 x 12 594,5 x 394,5 x 120DIN EN 1339 PKDUI 30
90 x 45 x 12 894,5 x 444,5 x 120DIN EN 1339 PKDUI 25

20 x 15 x 14 194,5 x 144,5 x 140DIN EN 1338 KDI
30 x 15 x 14 294 x 144 x 140DIN EN 1338 KDI
30 x 30 x 14 294,5 x 294,5 x 140DIN EN 1338 KDI
40 x 20 x 14 394,5 x 194,5 x 140DIN EN 1338 KDI
60 x 30 x 14 594,5 x 294,5 x 140DIN EN 1339 PKDUI 30
60 x 40 x 14 594,5 x 394,5 x 140DIN EN 1339 PKDUI 30
60 x 60 x 14 594,5 x 594,5 x 140DIN EN 1339 PKDUI 30
90 x 90 x 14 894 x 894 x 140DIN EN 1339 PKDUI 30

30 x 15 x 16 295 x 145 x 160DIN EN 1338 KDI
40 x 20 x 16 394,5 x 194,5 x 160DIN EN 1338 KDI
50 x 10 x 16 494,5 x 94,5 x 160 DIN EN 1338 KDI
60 x 30 x 16 594,5 x 294,5 x 160DIN EN 1338 KDI
60 x 60 x 16 594 x 594 x 160DIN EN 1338 KDI
80 x 40 x 16 794,5 x 394,5 x 160DIN EN 1339 PKDUI 30

40 x 20 x 18 394 x 194 x 180DIN EN 1338 KDI
60 x 40 x 18 594 x 394 x 180DIN EN 1338 KDI
80 x 60 x 18 794 x 594 x 180DIN EN 1339 PKDUI 30


Running bond

Corio Kombiform v1
Running bond 8 cm*

Corio running bond is delivered in layers.

One layer contains
2 units 40 x 16 x 8 cm, DIN EN 1339 PKDUI
2 units 35 x 16 x 8 cm, DIN EN 1339 PKDUI
6 units 30 x 16 x 8 cm, DIN EN 1338 KDI
6 units 25 x 16 x 8 cm, DIN EN 1338 KDI
6 units 35 x 12 x 8 cm, DIN EN 1339 PKDUI
6 units 25 x 12 x 8 cm, DIN EN 1338 KDI
1 layer = 1,20 m2

Corio Kombiform v1
Running bond 10 cm

Corio running bond 10 cm is delivered in layers.

one layer contains
2 units 40 x 16 x 10 cm, DIN EN 1338 KDI
2 units 35 x 16 x 10 cm, DIN EN 1338 KDI
6 units 30 x 16 x 10 cm, DIN EN 1338 KDI
6 units 25 x 16 x 10 cm, DIN EN 1338 KDI
6 units 35 x 12 x 10 cm, DIN EN 1338 KDI
6 units 25 x 12 x 10 cm, DIN EN 1338 KDI
1 layer = 1,20 m2

*stock-run products.

All dimensions given are grid dimensions including spacers and joint proportion.

The average infiltration rate of Corio Aqua is over 1.000 l/(s.ha). Thus, the guideline values of the ATV A 138 of 500 l/s.ha) are exceeded by far. A requirement of the perculation performance is the use of Aqua jointing split. In addition, the bedding and the bearing layer must be permeable to water.


Also available as eco-pavers.

For more information please contact us.

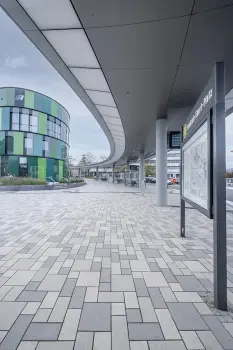

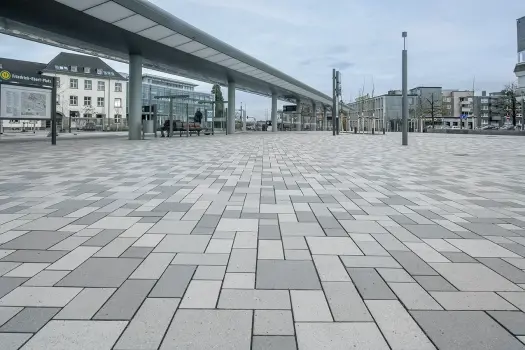

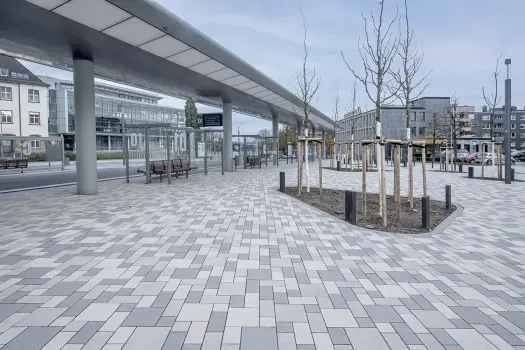

Gallery

Expand GalleryCollapse Gallery

Laying pattern calculator

Corio Pattern 1
PATTERN 1
Pattern 1

Pattern 1

Pattern 11/3
m²
units
Corio Pattern 2
PATTERN 2
Pattern 2

Pattern 2

Pattern 22/3
m²
units
Corio Pattern 3
PATTERN 3
Pattern 3

Pattern 3

Pattern 33/3

The quanities depend on the local conditions.
