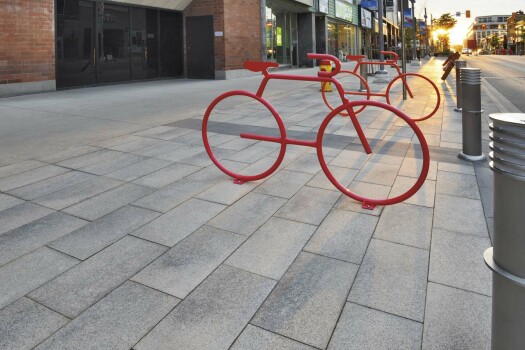

Ontario, Kitchener (CAN), King Street, Umbriano Grey granite-white textured.
Ontario, Kitchener (CAN), King Street, Umbriano Grey granite-white textured.

Whether as a five-centimeter-thick slab for pedestrian areas or as an eight-to-eighteen-centimeter-thick paving system that withstands the highest traffic loads - the fine grained Umbriano concrete blocks with unchamfered edges and the appearance of sawn natural stone are popular in both private and public areas. They enhance entrance areas, sidewalks, boulevards and urban spaces – as unmistakable unique with individual grain in the stone. With its unchamfered edges, Umbriano enables surface design with a smooth and homogeneous appearance combined with a very good walkability. The CleanTop® surface protection with CF 90 facilitates the maintenance of the stone. The production process developed by Metten especially for Umbriano is unique and internationally patented. Umbriano was awarded with the iF product design award and nominated for the Design Award of the Federal Republic of Germany.

Umbriano
Colours
Properties
Standard sizes
Object sizes
Gallery
Editions
CDFarben
References
Laying pattern calculator
System Bahnenware
Verlegehinweise
Downloads
Links
Dealers

Colours

Quarz beige textured
Quarz beige textured
Platinum grey textured
Platinum grey textured
Grey granite-red textured
Grey granite-red textured
Grey granite-white textured
Grey granite-white textured
Quartzite grey textured
Quartzite grey textured
Objectcolour 8038
Objectcolour 8038
Dolomite grey textured
Dolomite grey textured
Volcanic grey textured
Volcanic grey textured
Greyanthracite textured
Greyanthracite textured
Objectcolour 8037
Objectcolour 8037
Granite beige textured
Granite beige textured
Cashmere-beige
Cashmere-beige
Jura yellow textured
Jura yellow textured
Beige-brown textured
Beige-brown textured
Rubiginous brown textured
Rubiginous brown textured

Properties

  • Surface with natural-looking grain.
  • Awarded with renowned design prizes.
  • Wide range of sizes. Stone thicknesses from 5 to 18 cm possible. Available with and without chamfer.
  • Frost and de-icing salt resistant.
  • Slip-resistant.
  • Stone hardening process through climate-controlled surface finishing.
  • Climate-neutral and CO₂-certified production.
  • METTEN innovation. Production process and design are patented.

CleanTop® Technology

(optional)

CleanTop® protection system with Clean Factor CF 90 (integral part of the production process):

  • Reduced dirt absorption.
  • Natural appearance combined with surface protection.
  • Easier to clean compared to a product without CleanTop®.
  • Inhibits algae and moss.

Standard sizes

Filter:

Slabs

50 x 25 x 5 cm
Quarzbeige gemasertGranitbeige gemasertPlatingrau gemasertGrauanthrazit gemasert
DIN EN 1339 PKDUI 7
permeable to water
50 x 50 x 5 cm
Quarzbeige gemasertGranitbeige gemasertPlatingrau gemasertGrauanthrazit gemasert
DIN EN 1339 PKDUI 7
100 x 33,3 x 6 cm
Quarzbeige gemasertGranitbeige gemasertPlatingrau gemasertGrauanthrazit gemasert
DIN EN 1339 PKDUI 7

Steps

50 x 50 x 5 cm
Quarzbeige gemasertGranitbeige gemasertPlatingrau gemasertGrauanthrazit gemasert
DIN EN 1339 PKDUI 7
50 x 50 x 8 cm
Quarzbeige gemasertGranitbeige gemasertPlatingrau gemasertGrauanthrazit gemasert
DIN EN 1339 PKDUI 25

Pavers

25 x 25 x 8 cm
Platingrau gemasertGrauanthrazit gemasert
DIN EN 1338 KDI
permeable to water
drivable
40 x 10 x 8 cm
Quarzbeige gemasertPlatingrau gemasertGrauanthrazit gemasert
DIN EN 1339 PKDUI 7
permeable to water
drivable
50 x 25 x 8 cm
Quarzbeige gemasertGranitbeige gemasertPlatingrau gemasertGrauanthrazit gemasert
DIN EN 1339 PKDUI 11
permeable to water
drivable
50 x 50 x 8 cm
Quarzbeige gemasertGranitbeige gemasertPlatingrau gemasertGrauanthrazit gemasert
DIN EN 1339 PKDUI 25
drivable
100 x 50 x 8 cm
Platingrau gemasertGrauanthrazit gemasert
DIN EN 1339 PKDUI 11
Bedingt befahrbar
100 x 100 x 8 cm
Quarzbeige gemasertGranitbeige gemasertPlatingrau gemasertGrauanthrazit gemasert
DIN EN 1339 PKDUI 14
Bedingt befahrbar

Steps

blockstufe
100 x 35 x 15 cm
Platinum grey texturedGreyanthracite texturedGranite beige textured

BLOCKSTUFE
UMBRIANO
DIN EN 13198

Wallings

Belmuro Halb Normalstein
25,5 x 16,5 x 25,2 cm
Quarzbeige gemasertGranitbeige gemasertPlatingrau gemasertGrauanthrazit gemasert

1/2 NORMALSTEIN
BELMURO
DIN EN 13198

Belmuro Normalstein
50,5 x 16,5 x 25,2 cm
Quarzbeige gemasertGranitbeige gemasertPlatingrau gemasertGrauanthrazit gemasert

NORMALSTEIN
BELMURO
DIN EN 13198

Muretto Normalstein20cm
25 x 12,5 x 20 cm
GranitgrauSandsteinbeigeAnthrazit

1/2 NORMALSTEIN
MURETTO
DIN EN 13198

Muretto Normalstein60cm
50 x 12,5 x 20 cm
GranitgrauSandsteinbeigeAnthrazit

NORMALSTEIN
MURETTO
DIN EN 13198

All dimensions given are grid dimensions including spacers and joint proportion.

This size is suitable for vehicular applications (e.g. garage driveways) when superstructure and substructure are professionally executed.


Also available as eco-pavers.

For more information please contact us.

Object sizes

Without bevel edge

Plansizenominal sizeDIN EN Classification
25 x 25 x 5 246 x 246 x 50DIN EN 1339 PKDUI 7
47 x 47 x 5 466 x 466 x 50DIN EN 1339 PKDUI 7
50 x 15 x 5 496 x 146 x 50DIN EN 1339 PKDUI 3
50 x 25 x 5 *496 x 246 x 50DIN EN 1339 PKDUI 7
50 x 40 x 5 496 x 396 x 50DIN EN 1339 PKDUI 4
50 x 50 x 5 *496 x 496 x 50DIN EN 1339 PKDUI 7
60 x 30 x 5 596 x 296 x 50DIN EN 1339 PKDUI 4

100 x 33,3 x 6 *996 x 329 x 60DIN EN 1339 PKDUI 7

15 x 15 x 8 146,5 x 146,5 x 80DIN EN 1338 KDI
22,5 x 15 x 8 221,5 x 146,5 x 80DIN EN 1338 KDI
25 x 12,5 x 8 246 x 121 x 80DIN EN 1338 KDI
25 x 25 x 8 *246 x 246 x 80DIN EN 1338 KDI
30 x 10 x 8 296,5 x 96,5 x 80DIN EN 1338 KDI
30 x 30 x 8 294,5 x 294,5 x 80DIN EN 1338 KDI
37,5 x 12,5 x 8 371 x 121 x 80DIN EN 1339 PKDUI 7
37,5 x 25 x 8 *371 x 246 x 80DIN EN 1339 PKDUI 14
40 x 10 x 8 *396 x 96 x 80DIN EN 1339 PKDUI 7
40 x 40 x 8 396 x 396 x 80DIN EN 1339 PKDUI 25
45 x 22,5 x 8 446 x 221 x 80DIN EN 1339 PKDUI 11
45 x 45 x 8 446 x 446 x 80DIN EN 1339 PKDUI 25
50 x 15 x 8 496 x 146 x 80DIN EN 1339 PKDUI 7
50 x 25 x 8 *496 x 246 x 80DIN EN 1339 PKDUI 11
50 x 40 x 8 496 x 396 x 80DIN EN 1339 PKDUI 14
50 x 50 x 8 *496 x 496 x 80DIN EN 1339 PKDUI 25
60 x 30 x 8 596 x 296 x 80DIN EN 1339 PKDUI 11
60 x 60 x 8 596 x 596 x 80DIN EN 1339 PKDUI 25
100 x 50 x 8 *996 x 496 x 80DIN EN 1339 PKDUI 11
100 x 100 x 8 *996 x 996 x 80DIN EN 1339 PKDUI 14

12,5 x 12,5 x 10 121 x 121 x 100DIN EN 1338 KDI
20 x 10 x 10 196 x 96 x 100DIN EN 1338 KDI
20 x 20 x 10 196 x 196 x 100DIN EN 1338 KDI
25 x 12,5 x 10 246 x 121 x 100DIN EN 1338 KDI
25 x 25 x 10 246 x 246 x 100DIN EN 1338 KDI
30 x 20 x 10 296 x 196 x 100DIN EN 1338 KDI
37,5 x 25 x 10 371 x 246 x 100DIN EN 1338 KDI

15 x 15 x 12 144,5 x 144,5 x 120DIN EN 1338 KDI
20 x 15 x 12 194,5 x 144,5 x 120DIN EN 1338 KDI
22,5 x 22,5 x 12 219,5 x 219,5 x 120DIN EN 1338 KDI
25 x 25 x 12 244,5 x 244,5 x 120DIN EN 1338 KDI
30 x 15 x 12 294,5 x 144,5 x 120DIN EN 1338 KDI
30 x 30 x 12 294,5 x 294,5 x 120DIN EN 1338 KDI
37,5 x 25 x 12 369,5 x 244,5 x 120DIN EN 1338 KDI
40 x 20 x 12 394,5 x 194,5 x 120DIN EN 1338 KDI
40 x 40 x 12 394,5 x 394,5 x 120DIN EN 1338 KDI
45 x 22,5 x 12 444,5 x 219,5 x 120DIN EN 1338 KDI
50 x 10 x 12 494,5 x 100 x 120DIN EN 1339 PKDUI 11
50 x 25 x 12 494,5 x 244,5 x 120DIN EN 1339 PKDUI 30
50 x 50 x 12 494,5 x 494,5 x 120DIN EN 1339 PKDUI 30
60 x 40 x 12 594,5 x 394,5 x 120DIN EN 1339 PKDUI 30

20 x 15 x 14 194 x 144 x 140DIN EN 1338 KDI
25 x 25 x 14 244,5 x 244,5 x 140DIN EN 1338 KDI
30 x 15 x 14 294,5 x 144,5 x 140DIN EN 1338 KDI
30 x 30 x 14 294,5 x 294,5 x 140DIN EN 1338 KDI
37,5 x 25 x 14 369,5 x 244,5 x 140DIN EN 1338 KDI
40 x 20 x 14 394,5 x 194,5 x 140DIN EN 1338 KDI
45 x 30 x 14 444,5 x 294,5 x 140DIN EN 1338 KDI
50 x 50 x 14 494,5 x 494,5 x 140DIN EN 1338 KDI
60 x 30 x 14 594,5 x 294,5 x 140DIN EN 1339 PKDUI 30
60 x 60 x 14 594,5 x 594,5 x 140DIN EN 1339 PKDUI 30

30 x 20 x 16 294,5 x 194,5 x 160DIN EN 1338 KDI
30 x 30 x 16 294,5 x 294,5 x 160DIN EN 1338 KDI
37,5 x 10 x 16 369,5 x 94,5 x 160DIN EN 1338 KDI
40 x 20 x 16 394,5 x 194,5 x 160DIN EN 1338 KDI
40 x 30 x 16 394,5 x 294,5 x 160DIN EN 1338 KDI
50 x 10 x 16 494,5 x 94,5 x 160 DIN EN 1338 KDI
50 x 25 x 16 494,5 x 244,5 x 160DIN EN 1338 KDI
50 x 30 x 16 494,5 x 294,5 x 160DIN EN 1338 KDI
60 x 30 x 16 594,5 x 294,5 x 160DIN EN 1338 KDI
60 x 60 x 16 594 x 594 x 160DIN EN 1338 KDI

25 x 25 x 18 244,5 x 244,5 x 180DIN EN 1338 KDI
50 x 25 x 18 494,5 x 244,5 x 180DIN EN 1338 KDI
50 x 50 x 18 494,5 x 494,5 x 180DIN EN 1338 KDI


Bevel edge

Plansizenominal sizeDIN EN Classification
10 x 10 x 8 96,5 x 96,5 x 80DIN EN 1338 KDI
20 x 10 x 8 196,5 x 96,5 x 80DIN EN 1338 KDI
20 x 15 x 8 196,5 x 146,5 x 80DIN EN 1338 KDI
20 x 20 x 8 194,5 x 194,5 x 80DIN EN 1338 KDI
30 x 15 x 8 294,5 x 144,5 x 80DIN EN 1338 KDI
30 x 20 x 8 296,5 x 196,5 x 80DIN EN 1338 KDI
30 x 30 x 8 296,5 x 296,5 x 80DIN EN 1338 KDI
37,5 x 12,5 x 8 371 x 121 x 80DIN EN 1339 PKDUI 7
60 x 30 x 8 596 x 296 x 80DIN EN 1339 PKDUI 11

15 x 15 x 10 144 x 144 x 100DIN EN 1338 KDI
30 x 15 x 10 294 x 144 x 100DIN EN 1338 KDI
30 x 30 x 10 294 x 294 x 100DIN EN 1338 KDI
60 x 30 x 10 594,5 x 294,5 x 100DIN EN 1339 PKDUI 14
60 x 60 x 10 594,5 x 594,5 x 100DIN EN 1339 PKDUI 30

10 x 10 x 12 96 x 96 x 120DIN EN 1338 KDI
15 x 15 x 12 144,5 x 144,5 x 120DIN EN 1338 KDI
20 x 10 x 12 194,5 x 94,5 x 120DIN EN 1338 KDI
20 x 15 x 12 194,5 x 144,5 x 120DIN EN 1338 KDI
20 x 20 x 12 194 x 194 x 120DIN EN 1338 KDI
22,5 x 15 x 12 219,5 x 144,5 x 120DIN EN 1338 KDI
22,5 x 22,5 x 12 219,5 x 219,5 x 120DIN EN 1338 KDI
30 x 15 x 12 294,5 x 144,5 x 120DIN EN 1338 KDI
30 x 20 x 12 294,5 x 194,5 x 120DIN EN 1338 KDI
30 x 30 x 12 294 x 294 x 120DIN EN 1338 KDI
40 x 20 x 12 394,5 x 194,5 x 120DIN EN 1338 KDI
40 x 40 x 12 394,5 x 394,5 x 120DIN EN 1338 KDI
45 x 30 x 12 444,5 x 294,5 x 120DIN EN 1338 KDI
60 x 40 x 12 594,5 x 394,5 x 120DIN EN 1339 PKDUI 30
90 x 45 x 12 894,5 x 444,5 x 120DIN EN 1339 PKDUI 25

20 x 15 x 14 194,5 x 144,5 x 140DIN EN 1338 KDI
30 x 15 x 14 294 x 144 x 140DIN EN 1338 KDI
30 x 30 x 14 294,5 x 294,5 x 140DIN EN 1338 KDI
40 x 20 x 14 394,5 x 194,5 x 140DIN EN 1338 KDI
60 x 30 x 14 594,5 x 294,5 x 140DIN EN 1339 PKDUI 30
60 x 40 x 14 594,5 x 394,5 x 140DIN EN 1339 PKDUI 30
60 x 60 x 14 594,5 x 594,5 x 140DIN EN 1339 PKDUI 30
90 x 90 x 14 894 x 894 x 140DIN EN 1339 PKDUI 30
100 x 50 x 14 994,5 x 494,5 x 140DIN EN 1339 PKDUI 30

30 x 15 x 16 295 x 145 x 160DIN EN 1338 KDI
40 x 20 x 16 394,5 x 194,5 x 160DIN EN 1338 KDI
50 x 10 x 16 494,5 x 94,5 x 160 DIN EN 1338 KDI
60 x 30 x 16 594,5 x 294,5 x 160DIN EN 1338 KDI
60 x 60 x 16 594 x 594 x 160DIN EN 1338 KDI
80 x 40 x 16 794,5 x 394,5 x 160DIN EN 1339 PKDUI 30

40 x 20 x 18 394 x 194 x 180DIN EN 1338 KDI
60 x 40 x 18 594 x 394 x 180DIN EN 1338 KDI
80 x 60 x 18 794 x 594 x 180DIN EN 1339 PKDUI 30
100 x 70 x 18 994 x 694 x 180DIN EN 1339 PKDUI 30
120 x 60 x 18 1194,5 x 594,5 x 180DIN EN 1339 PKDUI 30
120 x 65 x 18 1194,5 x 644,5 x 180DIN EN 1339 PKDUI 30


Römischer Verband

LaLiniaRoemischerVerband

Roman Bond 8 cm

Roman-Bond-Pavers delivered in layers.
One layer contains:
2 units 48 x 32 x 8 cm, DIN EN 1339 PKDUI
+ 4 units 32 x 32 x 8 cm, DIN EN 1339 PKDUI
+ 2 units 32 x 16 x 8 cm, DIN EN 1339 PKDUI
+ 4 units 16 x 16 x 8 cm, DIN EN 1338 KDI
1 layer = 1,00 m2


Roman Bond 12 cm

Roman-Bond-Pavers delivered in layers.
One layer contains:
2 units 48 x 32 x 12 cm, DIN EN 1339 PKDUI
+ 4 units 32 x 32 x 12 cm, DIN EN 1339 PKDUI
+ 2 units 32 x 16 x 12 cm, DIN EN 1339 PKDUI
+ 4 units 16 x 16 x 12 cm, DIN EN 1338 KDI
1 layer = 1,00 m2

*stock-run products.
All dimensions given are grid dimensions including spacers and joint proportion.


Also available as eco-pavers.

For more information please contact us.

Gallery

Expand GalleryCollapse Gallery

References

Umbriano Privatobjekt Amersfoort NL 2448 14

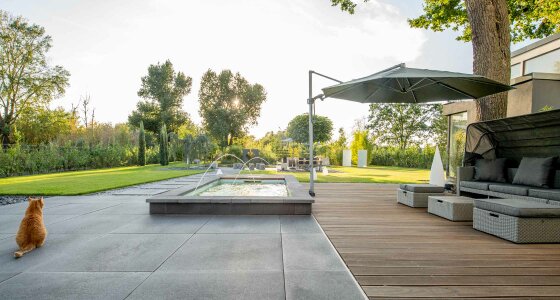

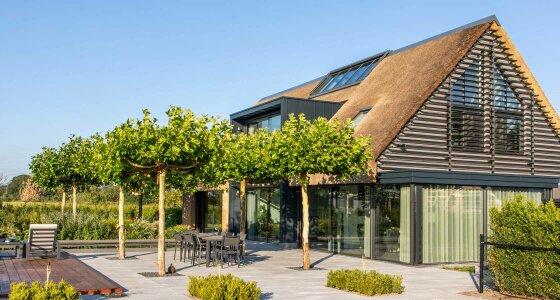

Privatobjekt in Amersfoort (NL)
 Umbriano Privatobjekt Berlin Arthouse 2370 043
Privatobjekt in Berlin
 Umbriano Privatobjekt Buchheim 2117 38
Privatobjekt in Buchholz
 Umbriano Minden Fussgaengerzone 2389 004
Fußgängerzone, Minden
 Umbriano Rolandsbad Paderborn 719 210
Rolandsbad, Paderborn
 Umbriano Condominium Toronto 7902
Queen & Portland Condominium, Toronto Ontario (CA)
 Umbriano University Illinois Chicago 248
Northeastern Illinois University, Chicago (CA)
 Umbriano School of Music Bienen 2897
Northwestern University Bienen School of Music, Chicago (CA)
 Umbriano Public Plaza Tower Toronto 6307
Public Plaza am CN Tower, Toronto (CA)
 Umbriano Rheinrefugium Koeln 2236 3235
Rheinrefugium, Köln
 Umbriano Pflaster Fraunhofer Institut Freiburg 11 0031
Fraunhofer-Institut für angewandte Festkörperphysik IAF, Freiburg
 Umbriano Pflaster Deutz AG Koeln 664 349
Deutz AG, Köln
 Umbriano Severinstrasse Koeln 984 12
Severinstraße, Köln
 Umbriano Neue Mitte Ingelheim 2081 135
Neue-Mitte, Ingelheim
 Umbriano Leidschehof Den Haag 914-1
Leidschehof Gesundheitszentrum, Den Haag Niederlande
 Umbriano Rathausvorplatz Menden Pflaster 8912 2023
Rathausvorplatz, Menden
 Umbriano Privatobjekt Bad Honnef 980 34
Privatobjekt, Bad Honnef
 Umbriano GWG Koeln Nord 689 001
GWG, Köln
 Umbriano Universitaet Bochum 703 017
Universität Bochum, Bochum
 Umbriano Altstadt Duesseldorf Granitgrau weiss 2165 0015
Altstadt Düsseldorf
 Umbriano Stadt Limburg 22080 6872
Stadt Limburg
 Umbriano Universitaet Marburg 2203 4496
Universität Marburg
 Umbriano Platten Terrasse Grauanthrazit gemasert
Privatobjekt bei Hamburg
 Umbriano Chorzow Polen 06 2013
Fußgängerzone Jagiellońska, Chorzów Polen
 Umbriano Global City Business Park Bukarest 3341
Global City Business Park Bukarest, Rumänien
 Umbriano Pflaster Hauptplatz Kapfenberg Oesterreich 35457 045
Hauptplatz Kapfenberg, Österreich
Umbriano Saudi Arabien Riyadh 034
Criminal Court, Riyadh Saudi-Arabien

Laying pattern calculator

Umbriano Pattern 02
PATTERN 02
Pattern 02

Pattern 02

U2

Pattern 021/19
m²
units
units
Umbriano Pattern 03
PATTERN 03
Pattern 03

Pattern 03

U3
Number of units per m²:
50 x 50 cm approx. 3.2 units
25 x 25 cm approx. 3.2 units
Edge units per running metre:
50 x 25 cm approx. 0.8 units

for pavers of 8 cm and
slabs of 5 cm thickness

Pattern 032/19
m²
units
units
rm
units
Umbriano Pattern 04
PATTERN 04
Pattern 04

Pattern 04

LL5?
Number of units per m²:
25 x 25 cm approx. 16 units
Edge units per running metre:
37.5 x 25 cm approx. 2 units

only for pavers of 8 cm thickness

Pattern 043/19
m²
units
rm
units
Umbriano Pattern 05
PATTERN 05
Pattern 05

Pattern 05

Number of units per m²:
50 x 50 cm approx. 4 units
Edge units per running metre:
50 x 25 cm approx. 1 unit

for pavers of 8 cm and
slabs of 5 cm thickness

Pattern 054/19
m²
units
units
rm
units
Umbriano Pattern 06
PATTERN 06
Pattern 06

Pattern 06

Pattern 065/19
m²
units
units
Umbriano Pattern 07
PATTERN 07
Pattern 07

Pattern 07

Um7
Number of units per m²:
37.5 x 25 cm approx. 10.66 units
Edge units per running metre:
25 x 25 cm approx. 2 units

only for pavers of 8 cm thickness

Pattern 076/19
Umbriano Pattern 08
PATTERN 08
Pattern 08

Pattern 08

U8
Number of units per m²:
37.5 x 25 cm approx. 8 units
25 x 25 cm approx. 4 units
Edge units per running metre:
25 x 25 cm approx. 1 unit

only for pavers of 8 cm thickness

Pattern 087/19
m²
units
units
rm
units
Umbriano Pattern 09
PATTERN 09
Pattern 09

Pattern 09

U9
Number of units per m²:
37.5 x 25 cm approx. 10.66 units
Edge units must be cut to size on site where necessary.

only for pavers of 8 cm thickness

Pattern 098/19
m²
units
Umbriano Pattern 10
PATTERN 10
Pattern 10

Pattern 10

U10
Number of units per m²:
50 x 50 cm approx. 1.8 units
50 x 25 cm approx. 3.6 units
25 x 25 cm approx. 1.8 units

for pavers of 8 cm

Pattern 109/19
m²
units
units
units
Umbriano Pattern 11
PATTERN 11
Pattern 11

Pattern 11

U11
Number of units per m²:
50 x 25 cm approx. 8 units
Edge units per running metre:
37.5 x 25 cm approx. 2 units
25 x 25 cm approx. 1 unit

only for pavers of 8 cm thickness

Pattern 1110/19
m²
units
rm
units
units
Umbriano Pattern 12
PATTERN 12
Pattern 12

Pattern 12

U12
Number of units per m²:
50 x 25 cm approx. 4.57 units
37.5 x 25 cm approx. 4.57 units
Edge units must be cut to size on site.

only for pavers of 8 cm thickness

Pattern 1211/19
m²
units
units
Umbriano Pattern 14
PATTERN 14
Pattern 14

Pattern 14

U14
Number of units per m²:
37.5 x 25 cm approx. 8 units
25 x 25 cm approx. 4 units
Edge units per running metre:
25 x 25 cm approx. 2 units

only for pavers of 8 cm thickness

Pattern 1412/19
m²
units
units
rm
units
Umbriano Pattern 15
PATTERN 15
Pattern 15

Pattern 15

U16
Number of units per m²:
50 x 25 cm approx. 8 units
Edge units per running metre:
37.5 x 25 cm approx. 2 units

only for pavers of 8 cm thickness

Pattern 1513/19
m²
units
rm
units
Umbriano Pattern 18
PATTERN 18
Pattern 18

Pattern 18

U

Pattern 1814/19
m²
units
Umbriano Pattern 17
PATTERN 17
Pattern 17

Pattern 17

LL

Pattern 1715/19
m²
units
units
Umbriano Pattern 19
PATTERN 19
Pattern 19

Pattern 19

U

Pattern 1916/19
m²
units
units
Umbriano Pattern 20
PATTERN 20
Pattern 20

Pattern 20

Pattern 2017/19
m²
units
units
Umbriano Pattern 21
PATTERN 21
Pattern 21

Pattern 21

Pattern 2118/19
m²
units
Umbriano Pattern 22
PATTERN 22
Pattern 22

Pattern 22

Pattern 2219/19
m²
units
units
units

The quantity of vertical bond depends on the structural situation.
Laying patterns and hatching are available on request.

System Bahnenware

Thickness 8 cm:

Pattern 8/1 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

8 cm thickness is suitable for pedestrian areas or car traffic with a gross vehicle weight of 2.91 tons (0.78 to wheel load).

 The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Naturally structured surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Pattern 8/2 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

8 cm thickness is suitable for pedestrian areas or car traffic with a gross vehicle weight of 2.91 tons (0.78 to wheel load).

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Naturally structured surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Thickness 10 cm:

Pattern 10/1 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

10 cm thickness is suitable for pedestrian areas or car traffic with a gross vehicle weight of 2.91 tons (0.78 to wheel load).

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Naturally structured surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Thickness 12 cm:

Pattern 12/2 (with and without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Ground, very dense surface.
 without chamfer.

12 cm thickness is suitable for demands of vehicles with a gross vehicle weight of 2,3 tons (eg carriers with a gross vehicle weight of 7.5 tons) for occasionally visit.

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 with and without chamfer.
Homogenous and dense surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.
Highly compressed, fine surface.
 with chamfer.
Surface with the appearance of sawn natural stone.
 without chamfer.
Naturally structured surface.
 with and without chamfer.

Pattern 12/3 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

12 cm thickness is suitable for demands of vehicles with a gross vehicle weight of 2,3 tons (eg carriers with a gross vehicle weight of 7.5 tons) for occasionally visit.

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Pattern 12/4 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

12 cm thickness is suitable for demands of vehicles with a gross vehicle weight of 2,3 tons (eg carriers with a gross vehicle weight of 7.5 tons) for occasionally visit.

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Naturally structured surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Thickness 14 cm:

Pattern 14/1 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer. The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.
Naturally structured surface.
 without chamfer.
Homogenous and very dense surface.
 without chamfer.

Thickness 16 cm:

Pattern 16/3 (without chamfer)

Sizes used:

Available products:

chamfer:

advice:
Surface with the appearance of sawn natural stone.
 without chamfer.

16 cm thickness is suitable for demands of vehicles with a gross vehicle weight of 5 tons (eg lorries with a gross vehicle weight of 16 tons) for occasionally visit.

The above grey-colored stones (facing panel) must be cut on site in a grid of 2.5 cm (eg 10 cm, 12.5 cm, 15 cm ...).
Finely blasted surface.
 without chamfer.
Homogenous and dense surface.
 without chamfer.

Umbriano.com

More information on umbriano.com

Downloads

Umbriano Privatobjekt Bonn
Umbriano Privatobjekt Bonn
 pdf (679 KB)
Umbriano Privatobjekt Hamburg
Umbriano Privatobjekt Hamburg
 pdf (693 KB)
Umbriano Privatobjekt in Buchholz
Umbriano Privatobjekt in Buchholz
 pdf (574 KB)
